NDTJ-2 Pneumatic Propeller
1. Overview
NDTJ-2 is a new type of pneumatic propeller that driven back and forth,it is mainly used for driving and reversing of the ignitor, nozzle,flame probe,etc.
It has many advantages such as reasonable and simple construction, low noise, small size, easy installation and maintenance, auto—controllable.

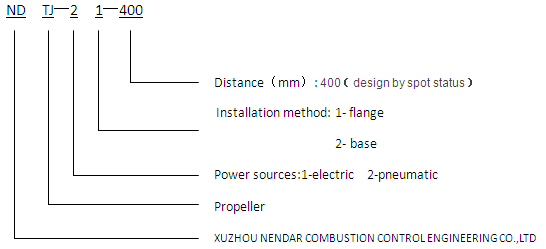

2. Specify of modle
3. Technical Parameter
|
Model |
NDHJ-11-400 |
|
Distance（mm） |
400 |
|
Action time（s） |
4 |
|
Biggest Thrust（N） |
1000 |
|
Power |
AC220，50Hz |
|
Air Pressure（MPa） |
0.4~0.8 |
|
Current Temperature(℃) |
-10~80 |
|
Weight（Kg） |
17 |
