NDTJ-1 Electric Propeller
1. Overview
NDTJ-1 is a new type of electric propeller that driven back and forth,it is mainly used for driving and reversing of the ignitor, nozzle,flame probe,etc.Which has many advantages such as advanced performance, reasonable structure, flexible movement, stable and reliable work,auto—controllable.

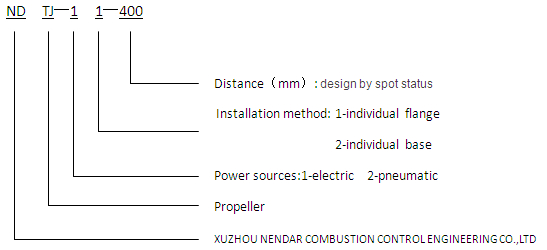

2. Specify of modle
3. Technical Parameter
Model NDHJ-11-400 NDHJ-12-400 Thrust（N） 1000 1000 Speed of advance（mm/s） 100 100 Distance（mm） 400 400 Motor model YS7124 YS7124 Motor power（W） 370 370 Motor speed（rpm） 1400 1400 Motor voltage（V） AC380 AC380 Motor current（A） 1.12 1.12 Installation method flange base Weight（Kg） 25 27
