UNIFLAME IR/UV/DS

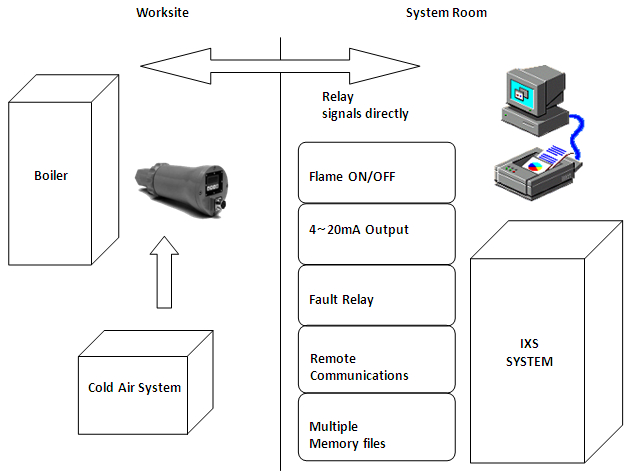

1.System of The Integration Flame Detector
2.DESCRIPTION
-Forney’s UNIFLAME Series flame detectors utilize micro-processor based technology combined with solid state infrared (IR), ultraviolet (UV), or dual (IR and UV) sensors. An adjustable flame relay resides in the body of the UNIFLAME Series flame detector, eliminating the need for a remote amplifier. -The UNIFLAME Series flame detectors work on an amplitude and frequency (flame flicker) principle. The appropriate flicker frequency and amplitude gain is automatically configured in the AUTOTUNE mode or can be manually selected via the EDIT mode. -Other features of the UNIFLAME Series flame detectors include automatic or manual adjustment of the flame relay ON and OFF Thresholds, 4-20 mA output, SPST flame relay, SPST fault relay, four remotely selectable program files, plus remote RS485 communications via Forney’s Windows 95/98/NT based user software. -All UNIFLAME detector models are powered by 24 Vdc, have a 12 pin electrical quick disconnect, contain electronic self-checking (no mechanical shutter) and are fully self-diagnostic. -The detectors contain an eight-character alpha-numeric LED display and a four (4) push-button keypad to enable the user to view operating parameters and configure setpoints.
3. FEATURES
Features InfraRed UltraViolet MultiSpectral Infrared Sensor √ √ Ultraviolet Sensor √ √ Flame Relay √ √ √ Fault Relay √ √ √ 4~20 mA output √ √ √ Gain Adjust √ √ √ Frequency Selections √ √ √ Multiple Memory Files √ √ √ Remote Communications √ √ √ AUTOTUNE √ √ √ Manual Tune √ √ √ Local Display √ √ √ Local Flame Sighting Indicator √ √ √ Self Diagnostics √ √ √ Self Check (electronic) √ √ √ 1 Sensor Signal Contribution √ √ √ 2 Sensor Signal Contribution √ IR-The InfraRed Model (P/N 401111-01) contains an infrared flame sensor, responding to wavelengths in the infrared range from 700 nm to 1700 nm. This sensor is best suited for all oil and coal fired applications. UV-The UltraViolet Model (P/N 401112-01) contains an ultraviolet flame sensor, responding to wavelengths in the ultraviolet range from 295 nm to 335 nm. This sensor is best suited for gas and light oil applications. DS-The MultiSpectral Model (P/N 401113-01) contains an infrared sensor as well as an ultraviolet sensor. Each respective sensor responds to wavelengths in the infrared range from 700 nm to 1700 nm and to wavelengths in the ultraviolet range from 295 nm to 335 nm.
